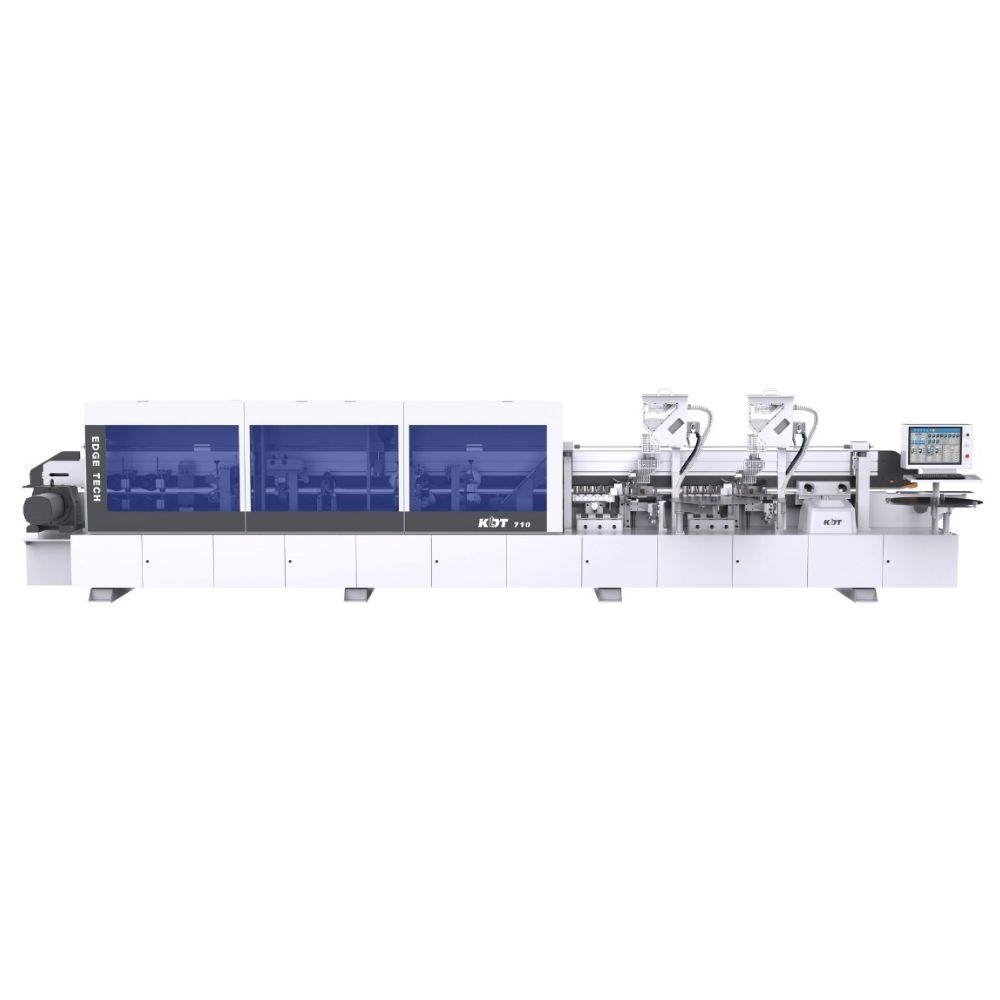

Edge Banding Machine KDT KE 710GBSUT

KDT 710 GBSUT is designed for users who frequently use different types of adhesive, as it features 2 glue units. This saves time because changing adhesive is not necessary, while also enabling a quick switch between EVA and PUR glue, significantly increasing productivity.

The KDT KE 710GBSUT edge banding machine is an upgraded version of the well-known KDT 710 model, designed for more demanding production conditions and greater precision in edge bonding. It retains the robust and compact construction of the base model while introducing numerous upgrades that make work faster, easier, and more flexible.

Main advantages of the KDT 710 GBSUT compared to the standard KDT 710:

Two glue pots: an ideal solution for users who frequently use different types of adhesive (EVA and PUR). Two glue pots allow quick switching between adhesives without downtime for changeover, significantly increasing productivity.

Automatic intelligent positioning: pressure units automatically adjust to the thickness of the workpiece, ensuring perfect adhesion of the edge band without manual adjustment.

Pressure unit with V-belt: provides greater stability and better contact between the edge band and the panel, improving bonding quality and reducing the possibility of errors.

Advanced pneumatic functions: automatic trimming of edge band ends and corner rounding save time and reduce the need for additional manual work.

Fast setup and high flexibility: servo movements and the option to choose between two radii allow precision up to 0.01 mm and easy adjustment to different material thicknesses.

Stable construction for continuous operation: monolithic and solid construction, manufactured with robotic welding and CNC machining, ensures reliable 24/7 operation.

Perfect edges: a double corner rounding unit with two high-frequency motors enables processing of four different profiles and ensures aesthetically perfect corners without manual corrections.

Edge banding machine specifications:

Machine units:

• Pre-milling
• Pressure unit
• Scraper
• First trimming unit for overhang removal
• Second trimming unit for overhang removal
• Corner rounding
• Profile scraper
• Glue scraper
• First polishing unit
• Second polishing unit

Minimum workpiece size: 120 × 90 mm Edge band thickness: 0.4–3 mm Workpiece thickness: 9–60 mm Workpiece width: ≥ 90 mm Workpiece length: ≥ 120 mm Total power: 28 kW Working pressure: 0.6 MPa Dimensions (L × W × H): 8800 × 940 × 1960 mm Weight: 3000 kg

Invest smart. Invest in KDT.

Image	Description
	The machine has 2 glue pots. The first is an automatic upper pre-melting glue pot with a 5-liter capacity. The glue is precisely dosed and does not overheat when the machine is idle. A control window allows monitoring of glue presence. Heating time and readiness for operation are 15 minutes.
	The machine is equipped with automatic pneumatic filling of granular adhesive. At the base of the machine bed there is a large 12.5 kg hopper from which granules are transported by airflow to the upper pre-melting hopper.
	Option to program technological interruptions of glue pot heating.
	Full servo control. The servo-driven scraping unit is equipped with two carbide radius knives that remove a thin layer from the processed edge after milling and eliminate kinematic waviness, resulting in a smooth finished surface. Switching the unit to another edge thickness (from R2 to R1) is performed via servo drive directly from the control panel.
	The servo trimming unit consists of two high-frequency electric motors equipped with diamond radius cutters, enabling processing of edge band material from 0.4 to 3.0 mm thick. The workpiece is guided by two large round wheels (one on each motor) mounted on a floating support structure, preventing chip formation during trimming. The first unit uses 2 mm radius cutters, the second 1 mm radius cutters. Each unit is set for different edge thicknesses, and switching between them is easily done via the control panel.
	The machine cabin doors are equipped with special sensors, ensuring safe operation.
	The centralized lubrication unit automatically lubricates the guides of the scraping unit.
	Automatic conveyor lubrication is performed via an electric pump.
	Double polishing unit polishes the processed edge. To achieve the final gloss, a polishing liquid application unit is installed.
	The unit is equipped with two motors and operates at a speed of 24 m/min. It is fitted with diamond radius cutters. Four operating modes are available.
